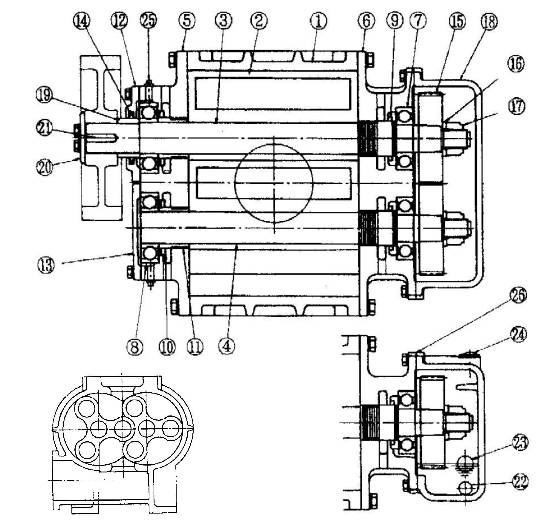

Type SSR Structral Drawing
Please Move MouseTo Number On Above，Show Help[ DownLoad ]

Name Material Qty Drain Plug FCMB 1 Name Material Qty Oil Gauge SS+Glass 1 Name Material Qty Air Breather Plastics 1 Name Material Qty Bearing SUJ2 2 Name Material Qty Stop Ring(Gear Side) NBR 2 Name Material Qty Bearing Sleeve S45C 2 Name Material Qty Driven Shaft S45C 1 Name Material Qty Gear Case Packing Three Sheet 1 Name Material Qty Gear Lock Nut SS400 2 Name Material Qty Gear Lock Washer SS400 2 Name Material Qty Gear Case FC200 1 Name Material Qty Gear SCM435 2 Name Material Qty Bearing Cover(Drive Side) FC200 1 Name Material Qty End Plate SS400 1 Name Material Qty Parallel Key S45C 1 Name Material Qty Collar S45C 1 Name Material Qty Z Seal NBR 1 Name Material Qty Bearing Cover(Drive Side) FC200 1 Name Material Qty Gearse Nipple C3604 2 Name Material Qty Side Cover(Drive Side) FC200 1 Name Material Qty Bearing SUJ2 2 Name Material Qty Stop Ring(Gear Side) NBR 2 Name Material Qty Drive Shaft S45C 1 Name Material Qty Side Cover(Gear Side) FC200 1 Name Material Qty Impeller FC200 2 Name Material Qty Casing FC200 1

NO
Name
Material
Qty
NO
Name
Material
Qty
1 Casing FC200 1 14 Z Seal NBR 1
2 Impeller FC200 2 15 Gear SCM435 2
3 Drive Shaft S45C 1 16 Gear Lock Washer SS400 2
4 Driven Shaft S45C 1 17 Gear Lock Nut SS400 2
5

Side Cover(Drive Side)

 FC200 1 18 Gear Case FC200 1
6 Side Cover(Gear Side) FC200 1 19 Collar S45C 1
7 Bearing SUJ2 2 20 End Plate SS400 1
8 Bearing SUJ2 2 21 Parallel Key S45C 1
9 Stop Ring(Gear Side) NBR 2 22 Drain Plug FCMB 1
10 Stop Ring(Gear Side) NBR 2 23 Oil Gauge SS+Glass 1
11 Bearing Sleeve S45C 2 24 Air Breather Plastics 1
12 Bearing Cover(Drive Side) FC200 1 25 Gearse Nipple C3604 2
13 Bearing Cover(Drive Side) FC200 1 26 Gear Case Packing Three_Sheet 1

Type SSR Construction of Blower Body

Name Material Qty Drive Shaft S45C 1 Name Material Qty Reducer Packing EPDM 1 Name Material Qty Grease Nipple C3601B 2 Name Material Qty Reducer Packing EPDM 1 Name Material Qty Reducer FC200 1 Name Material Qty Z Seal NBR 1 Name Material Qty Bearing cover(DriveSide) FC200 1 Name Material Qty Bearing cover(DriveSide) FC200 1 Name Material Qty Z Seal NBR 1 Name Material Qty Bearing sleeve S45C 2 Name Material Qty Stop Ring(Drive Side) NBR 1 Name Material Qty Bearing SUJ2 2 Name Material Qty Bearing sleeve(DriveSide) FC200 1 Name Material Qty Air Breather RESIN 1 Name Material Qty Grease Nipple C3601B 2 Name Material Qty Bearing SUJ2 2 Name Material Qty Stop Ring(Gear Side) NBR 2 Name Material Qty Gear Case Three sheet 3 Name Material Qty Side Cover(Gear Side) FC200 1 Name Material Qty Taper Pin S20C 6 Name Material Qty HEX. Bolt SS400 6 Name Material Qty Casing FC200 1 Name Material Qty Reducer Packing EPDM 1 Name Material Qty Reducer FC200 1 Name Material Qty HEX. Bolt SS400 6 Name Material Qty Driven shaft S45C 1 Name Material Qty Impeller FC200 1 Name Material Qty Side Cover(Drive Side) FC200 1 Name Material Qty Taper Pin S20C 6 Name Material Qty HEX. Bolt SS400 6 Name Material Qty HEX. Bolt SS400 6 Name Material Qty HEX. Bolt SS400 6 Name Material Qty HEX. Bolt SS400 6 Name Material Qty HEX. Bolt SS400 6

No. Name Material Q’ty No. Name Material Q’ty
1 Casing FC200 1 20 End Plate SS400 1
2 Impeller FC200 2 21 Parallel Key S45C 1
3 Drive Shaft S45C 1 22 Drain Plug FCMB 1
4 Driven shaft S45C 1 23 Oil Gauge SS＋Glass 1
5 Side Cover(Drive Side) FC200 1 24 Air Breather Resin 1
6 Side Cover(Gear Side) FC200 1 25 Grease Nipple C3601B 2
7 Bearing SUJ2 2 26 Gear Case Three sheet 1
8 Bearing SUJ2 2 27 Reducer FC200 1
9 Stop Ring(Gear Side) NBR 2 28 Reducer Packing EPDM 1
10 Stop Ring(Drive Side) NBR 2 29 Spacer SS400 1
11 Bearing sleeve S45C 2 30 V-pulley FC200 1
12 Bearing sleeve(DriveSide) FC200 1 31
13 Bearing cover(Driven Side) FC200 1 32 Taper Pin S20C 4
14 Z Seal NBR 1 33 HEX. Bolt SS400 6
15 Gear SCM435 2 34 HEX. Bolt SS400 6
16 Gear Lock Washer FC200 2 35 HEX. Bolt SS400 6
17 Gear Lock Nut SS400 2 36 HEX. Bolt SS400 6
18 Gear Case FC200 1 37 HEX. Bolt SS400 4
19 Collar S45C 1 38 HEX. Bolt SS400 2
